UHP Graphite Electrode

Product Features

• High purity and uniform structure: UHP graphite electrode is made of high quality raw materials and made of fine processing, with high purity and uniform structure. This characteristic allows the electrode to maintain stability and reliability during long-term use.
• Excellent electrical conductivity: UHP graphite electrode has very low resistivity, which can efficiently transmit electrical energy and reduce energy loss. This makes it particularly good in situations where high intensity current transmission is required.
• High thermal conductivity: UHP graphite electrode has excellent thermal conductivity, which can effectively conduct heat out and prevent the electrode from overheating and damage. This characteristic allows it to maintain stable performance in processes such as melting at high temperatures.
• High strength and wear resistance: UHP graphite electrode has high mechanical strength and wear resistance, can withstand greater mechanical stress and friction loss, extend the service life.
• Good oxidation resistance: under high temperature environment, UHP graphite electrode is not easy to be oxidized and can maintain a long service life.

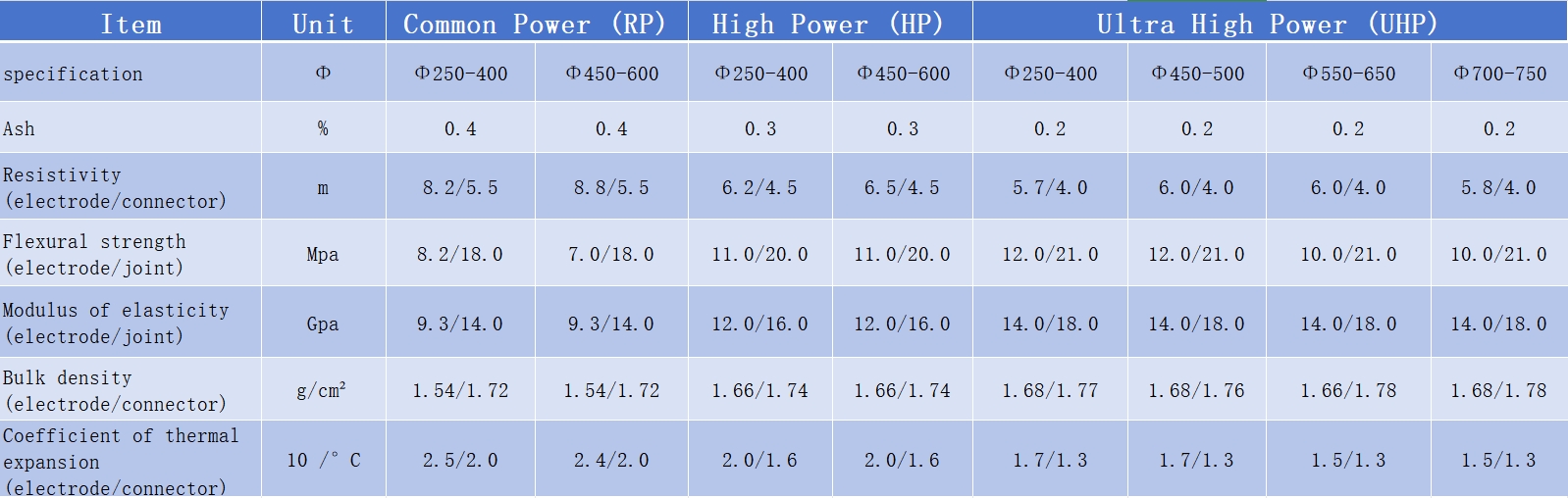

Product Parameter

Usage scenario

1. Steel smelting: UHP graphite electrodes are widely used in electric arc furnace steelmaking process in the steel industry. By using UHP graphite electrodes, the efficiency of steelmaking can be improved, the power consumption can be reduced, the loss of electrodes and the replacement frequency can be reduced, and the production cost can be reduced.
2. Non-ferrous metal smelting: In the process of non-ferrous metal smelting, UHP graphite electrodes also play an important role. It can improve the smelting efficiency and ensure the stability and reliability of the smelting process.
3. Edm: UHP graphite electrode can also be used in the field of EDM, such as EDM wire cutting, EDM perforation, etc. Its excellent electrical conductivity and high temperature resistance enable it to maintain stable performance and long service life in these processes.
4. Other industrial fields: In addition, UHP graphite electrodes can also be used as conductive electrodes in industrial silicon furnaces, yellow phosphorus furnaces, corundum furnaces, etc., and processed into various crucibles, graphite boats, hot die casting molds and vacuum electric furnaces, etc., to meet the needs of different industrial fields.
